Consul

O HashiCorp Consul foi criado em 2014 como um DNS-SD (DNS based Service Discovery) para resolver o problema de comunicação entre microsserviços, mas ele também possui outras funcionalidades como health checking e armazenamento de chave-valor (KV Store).

Cada nó possui um agente de monitoramento instalado que é responsável por enviar, de forma segura, informações do nó a um ou mais servidores.

Os servidores mantêm um catálogo com as informações dos nós, como quais serviços estão disponíveis em cada um e seus status.
Para alta disponibilidade, é recomendado ter de 3 a 5 servidores. Um deles será eleito como o líder.

Configuração manual

Para entender a arquitetura em detalhes, é interessante realizar a instalação passo a passo. Mais adiante será mostrado como realizar as configurações usando Docker-compose.

O processo de instalação do Consul e do Vault está bem detalhado na documentação oficial.

De forma resumida o passo a passo é o seguinte:

Inicie 5 máquinas com Linux
Pode ser em alguma cloud ou localmente. Três serão para o servidor Consul e duas para o Vault.

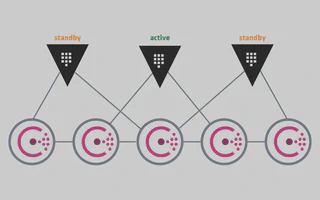

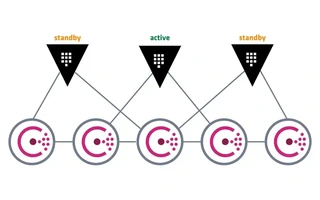

Na versão gratuita, apenas um nó do Vault fica ativo; os outros nós ficam em standby redirecionando os requests para o nó ativo. Se o nó que estava ativo fica indisponível, outro nó é eleito como o nó ativo.
O Consul também será instalado nas máquinas do Vault, porém em modo cliente.

Defina os hostnames

(vault-01)# echo "vault-01" > /etc/hostname
(vault-02)# echo "vault-02" > /etc/hostname
(consul-01)# echo "consul-01" > /etc/hostname
(consul-02)# echo "consul-02" > /etc/hostname
(consul-03)# echo "consul-03" > /etc/hostname

Instale o Consul em todas as máquinas
O site oficial possui instruções de instalação nas distribuições mais populares.
No Arch Linux seria o seguinte:
```
# pacman -S consul
```

Edite o arquivo de configuração dos servidores

# cat /etc/consul.d/consul_s1.json

{
  "server": true,
  "node_name": "$NODE_NAME",
  "datacenter": "dc1",
  "data_dir": "$CONSUL_DATA_PATH",
  "bind_addr": "0.0.0.0",
  "client_addr": "0.0.0.0",
  "advertise_addr": "$ADVERTISE_ADDR",
  "bootstrap_expect": 3,
  "retry_join": ["$JOIN1", "$JOIN2", "$JOIN3"],
  "ui": true,
  "log_level": "DEBUG",
  "enable_syslog": true,
  "acl_enforce_version_8": false
}

Edite o arquivo de configuração dos clientes

# cat /etc/consul.d/consul_c1.json

{
  "server": false,
  "datacenter": "dc1",
  "node_name": "$NODE_NAME",
  "data_dir": "$CONSUL_DATA_PATH",
  "bind_addr": "$BIND_ADDR",
  "client_addr": "127.0.0.1",
  "retry_join": ["$JOIN1", "$JOIN2", "$JOIN3"],
  "log_level": "DEBUG",
  "enable_syslog": true,
  "acl_enforce_version_8": false
}

Edite o systemd unit file dos servidores

# cat /etc/systemd/system/consul.service
### BEGIN INIT INFO
# Provides:          consul
# Required-Start:    $local_fs $remote_fs
# Required-Stop:     $local_fs $remote_fs
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: Consul agent
# Description:       Consul service discovery framework
### END INIT INFO

[Unit]
Description=Consul server agent
Requires=network-online.target
After=network-online.target

[Service]
User=consul
Group=consul
PIDFile=/var/run/consul/consul.pid
PermissionsStartOnly=true
ExecStartPre=-/bin/mkdir -p /var/run/consul
ExecStartPre=/bin/chown -R consul:consul /var/run/consul
ExecStart=/usr/local/bin/consul agent \
    -config-file=/usr/local/etc/consul/consul_s1.json \
    -pid-file=/var/run/consul/consul.pid
ExecReload=/bin/kill -HUP $MAINPID
KillMode=process
KillSignal=SIGTERM
Restart=on-failure
RestartSec=42s

[Install]
WantedBy=multi-user.target

Edite o systemd unit file dos clientes

### BEGIN INIT INFO
# Provides:          consul
# Required-Start:    $local_fs $remote_fs
# Required-Stop:     $local_fs $remote_fs
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: Consul agent
# Description:       Consul service discovery framework
### END INIT INFO

[Unit]
Description=Consul client agent
Requires=network-online.target
After=network-online.target

[Service]
User=consul
Group=consul
PIDFile=/var/run/consul/consul.pid
PermissionsStartOnly=true
ExecStartPre=-/bin/mkdir -p /var/run/consul
ExecStartPre=/bin/chown -R consul:consul /var/run/consul
ExecStart=/usr/local/bin/consul agent \
    -config-file=/usr/local/etc/consul/consul_c1.json \
    -pid-file=/var/run/consul/consul.pid
ExecReload=/bin/kill -HUP $MAINPID
KillMode=process
KillSignal=SIGTERM
Restart=on-failure
RestartSec=42s

[Install]
WantedBy=multi-user.target

Verifique se todos os serviços estão rodando

# systemctl daemon-reload
# systemctl start consul
# systemctl status consul

$ consul members
$ consul operator raft list-peers

Um dos servidores deve estar como líder.

Instale o Vault nas duas VMs
```
# pacman -S vault
```

Edite o arquivo de configuração do Vault

# cat /etc/vault/vault_s1.hcl

listener "tcp" {
  address          = "127.0.0.1:8200"
  cluster_address  = "127.0.0.1:8201"
  tls_disable      = "true"
}

storage "consul" {
  address = "127.0.0.1:8500"
  path    = "vault/"
}

api_addr =  "$API_ADDR"
cluster_addr = "$CLUSTER_ADDR"

Edite o systemd unit file dos Vaults

# cat /etc/systemd/system/vault.service

### BEGIN INIT INFO
# Provides:          consul
# Required-Start:    $local_fs $remote_fs
# Required-Stop:     $local_fs $remote_fs
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: Consul agent
# Description:       Consul service discovery framework
### END INIT INFO

[Unit]
Description=Consul client agent
Requires=network-online.target
After=network-online.target

[Service]
User=consul
Group=consul
PIDFile=/var/run/consul/consul.pid
PermissionsStartOnly=true
ExecStartPre=-/bin/mkdir -p /var/run/consul
ExecStartPre=/bin/chown -R consul:consul /var/run/consul
ExecStart=/usr/local/bin/consul agent \
    -config-file=/usr/local/etc/consul/consul_c1.json \
    -pid-file=/var/run/consul/consul.pid
ExecReload=/bin/kill -HUP $MAINPID
KillMode=process
KillSignal=SIGTERM
Restart=on-failure
RestartSec=42s

[Install]
WantedBy=multi-user.target

Verifique se todos os serviços estão rodando

# systemctl daemon-reload
# systemctl start vault
# systemctl status vault

Inicialize o Vault
```
$ vault operator init
```
Salve as chaves e o root token em um local seguro.

Unseal

$ vault operator unseal <unseal_key_1>
$ vault operator unseal <unseal_key_2>
$ vault operator unseal <unseal_key_3>

Daqui em diante, podemos seguir como detalhado em outro artigo.

Configuração via docker-compose

$ consul keygen
LvqkL8MCukmz4/Z6n7v/38XSVh9jjbNoDXx5dsFd6Nw=

$ consul tls ca create
==> Saved consul-agent-ca.pem
==> Saved consul-agent-ca-key.pem

$ consul tls cert create -server -dc dc1    ### -additional-dnsname=consul.server1
==> Saved dc1-server-consul-0.pem
==> Saved dc1-server-consul-0-key.pem

$ consul tls cert create -server -dc dc1
==> Saved dc1-server-consul-1.pem
==> Saved dc1-server-consul-1-key.pem

$ consul tls cert create -server -dc dc1
==> Saved dc1-server-consul-2.pem
==> Saved dc1-server-consul-2-key.pem

$ consul tls cert create -client -dc dc1 -additional-dnsname=consul-c1
==> Using consul-agent-ca.pem and consul-agent-ca-key.pem
==> Saved dc1-client-consul-0.pem
==> Saved dc1-client-consul-0-key.pem

$ consul tls cert create -client -dc dc1 -additional-dnsname=consul-c2
==> Using consul-agent-ca.pem and consul-agent-ca-key.pem
==> Saved dc1-client-consul-1.pem
==> Saved dc1-client-consul-1-key.pem

$ mv dc1-server-consul-0.pem Pasta/consul/config/server1/certs/server.pem
$ mv dc1-server-consul-1.pem Pasta/consul/config/server2/certs/server.pem
$ mv dc1-server-consul-2.pem Pasta/consul/config/server3/certs/server.pem

$ cp dc1-client-consul-0.pem Pasta/consul/config/client1/certs/client.pem
$ cp dc1-client-consul-1.pem Pasta/consul/config/client2/certs/client.pem
$ mv dc1-client-consul-0.pem Pasta/vault/config/server1/consul_tls/certs/client.pem
$ mv dc1-client-consul-1.pem Pasta/vault/config/server2/consul_tls/certs/client.pem

$ mv dc1-server-consul-0-key.pem Pasta/consul/config/server1/private/server-key.pem
$ mv dc1-server-consul-1-key.pem Pasta/consul/config/server2/private/server-key.pem
$ mv dc1-server-consul-2-key.pem Pasta/consul/config/server3/private/server-key.pem

$ cp dc1-client-consul-0-key.pem Pasta/consul/config/client1/private/client-key.pem
$ cp dc1-client-consul-1-key.pem Pasta/consul/config/client2/private/client-key.pem
$ mv dc1-client-consul-0-key.pem Pasta/vault/config/server1/consul_tls/private/client-key.pem
$ mv dc1-client-consul-1-key.pem Pasta/vault/config/server2/consul_tls/private/client-key.pem

$ cp consul-agent-ca.pem Pasta/consul/config/server1/certs/root.pem
$ cp consul-agent-ca.pem Pasta/consul/config/server2/certs/root.pem
$ cp consul-agent-ca.pem Pasta/consul/config/server3/certs/root.pem
$ cp consul-agent-ca.pem Pasta/consul/config/client1/certs/root.pem
$ cp consul-agent-ca.pem Pasta/consul/config/client2/certs/root.pem

$ cp consul-agent-ca.pem Pasta/vault/config/server1/consul_tls/certs/root.pem
$ cp consul-agent-ca.pem Pasta/vault/config/server2/consul_tls/certs/root.pem

Certificado auto assinado para o Vault:

$ cat selfsign_s1.cfr

[req]
distinguished_name = req_distinguished_name
x509_extensions = v3_req
prompt = no

[req_distinguished_name]
C = BR
ST = state
L =  city
O = company
CN = *

[v3_req]
subjectKeyIdentifier = hash
authorityKeyIdentifier = keyid,issuer
basicConstraints = CA:TRUE
subjectAltName = @alt_names

[alt_names]
DNS.1 = localhost
DNS.2 = s1.vault
DNS.3 = host.docker.internal
IP.1 = 172.16.238.151
IP.3 = 127.0.0.1

$ cat selfsign_s2.cfr

[req]
distinguished_name = req_distinguished_name
x509_extensions = v3_req
prompt = no

[req_distinguished_name]
C = BR
ST = state
L =  city
O = company
CN = *

[v3_req]
subjectKeyIdentifier = hash
authorityKeyIdentifier = keyid,issuer
basicConstraints = CA:TRUE
subjectAltName = @alt_names

[alt_names]
DNS.1 = localhost
DNS.2 = s2.vault
DNS.3 = host.docker.internal
IP.1 = 172.16.238.152
IP.2 = 127.0.0.1

$ openssl req -x509 -batch -nodes -newkey rsa:2048 -keyout server-key.pem -out server.pem -config selfsign_s1.cfr -days 9999
$ mv server.pem Pasta/vault/config/server1/tls/certs/server.pem
$ mv server-key.pem Pasta/vault/config/server1/tls/private/server-key.pem

$ openssl req -x509 -batch -nodes -newkey rsa:2048 -keyout server-key.pem -out server.pem -config selfsign_s2.cfr -days 9999
$ mv server.pem Pasta/vault/config/server2/tls/certs/server.pem
$ mv server-key.pem Pasta/vault/config/server2/tls/private/server-key.pem

$ cat docker-compose.yaml

version: "3.8"

services:
  consul_s1:
    container_name: consul.server1
    image: consul:latest
    command: ["agent", "-config-file=/consul/config/server_agent.json"]
    volumes:
      - ./consul/config/server1:/consul/config
      - ./consul/data/data_s1:/consul/data
    restart: unless-stopped
    ports:
      - "8090:8080"
      - "8300:8300"
      - "8500:8500"
      - "8600:8600/udp"
    networks:
      internal_net:
        ipv4_address: 172.16.238.53

  consul_s2:
    container_name: consul.server2
    image: consul:latest
    command: ["agent", "-config-file=/consul/config/server_agent.json"]
    volumes:
      - ./consul/config/server2:/consul/config
      - ./consul/data/data_s2:/consul/data
    restart: unless-stopped
    ports:
      - "8091:8080"
      - "8310:8300"
      - "8510:8500"
      - "8610:8600/udp"
    networks:
      internal_net:
        ipv4_address: 172.16.238.54

  consul_s3:
    container_name: consul.server3
    image: consul:latest
    command: ["agent", "-config-file=/consul/config/server_agent.json"]
    volumes:
      - ./consul/config/server3:/consul/config
      - ./consul/data/data_s3:/consul/data
    restart: unless-stopped
    ports:
      - "8092:8080"
      - "8320:8300"
      - "8520:8500"
      - "8620:8600/udp"
    networks:
      internal_net:
        ipv4_address: 172.16.238.55

  consul_c1:
    container_name: consul.client1
    image: consul:latest
    command: ["agent", "-config-file=/consul/config/client_agent.json"]
    volumes:
      - ./consul/config/client1:/consul/config
      - ./consul/data/data_c1:/consul/data
    restart: unless-stopped
    ports:
      - "8093:8080"
      - "8330:8300"
      - "8530:8500"
      - "8630:8600/udp"
    depends_on:
      - consul_s1
    networks:
      internal_net:
        ipv4_address: 172.16.238.201
        aliases:
          - consul-c1

  consul_c2:
    container_name: consul.client2
    image: consul:latest
    command: ["agent", "-config-file=/consul/config/client_agent.json"]
    volumes:
      - ./consul/config/client2:/consul/config
      - ./consul/data/data_c2:/consul/data
    restart: unless-stopped
    ports:
      - "8094:8080"
      - "8340:8300"
      - "8540:8500"
      - "8640:8600/udp"
    depends_on:
      - consul_s2
    networks:
      internal_net:
        ipv4_address: 172.16.238.202
        aliases:
          - consul-c2

  vault_s1:
    container_name: vault.server1
    image: vault:latest
    ports:
      - "9200:8200"
    expose:
      - "8500"
    volumes:
      - ./vault/config/server1:/vault/config
      - ./ca-certificates.crt:/etc/ssl/certs/ca-certificates.crt
      - ./vault/logs_s1:/vault/logs
    cap_add:
      - IPC_LOCK
    command: ["server", "-log-level=info"]
    environment:
      - VAULT_LOCAL_CONFIG={"ui":"true", "backend":{"consul":{"address":"consul-c1:8080",
        "path":"vault", "scheme":"https", "tls_ca_file":"/vault/config/consul_tls/certs/root.pem",
        "tls_cert_file":"/vault/config/consul_tls/certs/client.pem",
        "tls_key_file":"/vault/config/consul_tls/private/client-key.pem", "tls_skip_verify":0}},
        "listener":{"tcp":{"address":"0.0.0.0:8200", "cluster_address":"0.0.0.0:8201",
        "tls_disable":0, "tls_cert_file":"/vault/config/tls/certs/server.pem",
        "tls_key_file":"/vault/config/tls/private/server-key.pem", "tls_min_version":"tls12"}},
        "api_addr":"http://s1.vault:8200", "cluster_addr":"https://s1.vault:8201"}
      - VAULT_SKIP_VERIFY=false
    depends_on:
      - consul_c1
    extra_hosts:
      - "host.docker.internal:host-gateway"
    networks:
      internal_net:
        ipv4_address: 172.16.238.151
        aliases:
          - s1.vault
    restart: unless-stopped

  vault_s2:
    container_name: vault.server2
    image: vault:latest
    ports:
      - "9210:8200"
    expose:
      - "8500"
    volumes:
      - ./vault/config/server2:/vault/config
      - ./ca-certificates.crt:/etc/ssl/certs/ca-certificates.crt
      - ./vault/logs_s2:/vault/logs
    cap_add:
      - IPC_LOCK
    command: ["server", "-log-level=info"]
    environment:
      - VAULT_LOCAL_CONFIG={"ui":"true", "backend":{"consul":{"address":"consul-c2:8080",
        "path":"vault", "scheme":"https", "tls_ca_file":"/vault/config/consul_tls/certs/root.pem",
        "tls_cert_file":"/vault/config/consul_tls/certs/client.pem",
        "tls_key_file":"/vault/config/consul_tls/private/client-key.pem", "tls_skip_verify":0}},
        "listener":{"tcp":{"address":"0.0.0.0:8200", "cluster_address":"0.0.0.0:8201",
        "tls_disable":0, "tls_cert_file":"/vault/config/tls/certs/server.pem",
        "tls_key_file":"/vault/config/tls/private/server-key.pem", "tls_min_version":"tls12"}},
        "api_addr":"http://s2.vault:8200", "cluster_addr":"https://s2.vault:8201"}
      - VAULT_SKIP_VERIFY=false
    depends_on:
      - consul_c2
    extra_hosts:
      - "host.docker.internal:host-gateway"
    networks:
      internal_net:
        ipv4_address: 172.16.238.152
        aliases:
          - s2.vault
    restart: unless-stopped

networks:
  internal_net:
    driver: bridge
    ipam:
      driver: default
      config:
        - subnet: 172.16.238.0/24

$ docker-compose -f docker-compose.yaml up -d --remove-orphans

Endereços das UIs:

Links

https://github.com/alexwwang/HA-Vault-Consul-Docker

Autores

Julio Batista Silva (él/lo)

Senior Cloud Developer

Soy un ingeniero informático brasileño radicado en Alemania, apasionado por la tecnología, la ciencia, la fotografía y los idiomas.

Llevo programando cerca de dos décadas, explorando desde apps móviles y desarrollo web hasta aprendizaje automático. Hoy me enfoco en SRE en la nube e ingeniería de datos.

Soy voluntario en las comunidades de open source y Python, ayudando a organizar PyCon DE y PyData Berlin, dando mentorías y contribuyendo con código y traducciones.

En mi blog comparto consejos de Linux, guías de configuración y notas personales que escribí como referencia futura. Espero que también sean útiles para otras personas. El contenido está disponible en varios idiomas.

Visita mi galería para ver algunas de mis fotografías.

Fuera del teclado, me encontrarás en conciertos, tocando el clarinete, en bicicleta, buceando o explorando nuevos lugares, culturas y cocinas.

¡Siempre feliz de conectar! 🙂

← Snowplow ene. 8, 2023

Hashicorp Vault abr. 19, 2021 →

No results found

Hashicorp Vault em Alta Disponibilidade com Consul

Consul

Configuração manual

Configuração via docker-compose

Links
